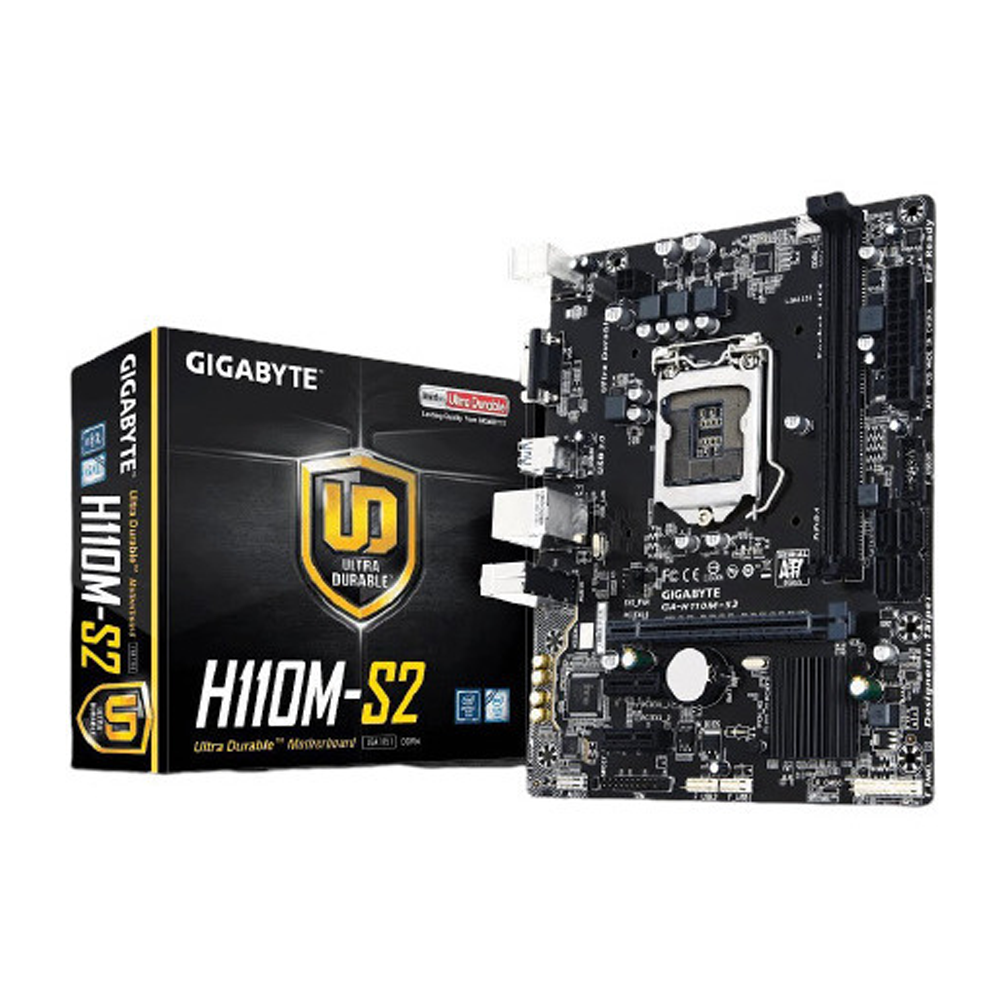

Gigabyte GA-H110M S2 7th or 6th Generation Motherboard( Recondtion)
Category: Motherboards |Brand: GIGABYTE
Specifications:
- Product Type :
- Motherboard
- Model :
- GA-H110M-S2
- Brand :
- Gigabyte
- Chipset :
- Intel Chipset H-110M
- Supported Processors :
- Support for 7th / 6th Generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors in the LGA1151
- Max Memory :
- 2 x DDR4 DIMM Sockets Supporting up to 32 GB of System Memory Dual Channel Memory Architecture Support for DDR4 2400/2133 MHz Memory Modules Support for ECC UDIMM 1Rx8/2Rx8 Memory Modules (operate in non-ECC Mode) Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 Memory Modules
- Onboard Video :
- Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz Max Shared Memory 1024 MB
- Onboard Audio :
- Realtek ALC887 Codec High Definition Audio 2/4/5.1/7.1-Channel Support for S/PDIF Out
- Onboard LAN :
- Realtek GbE LAN Chip 10/100/1000 Mbit
- Connectors :
- 1 x 24-pin ATX Main Power Connector 1 x 4-pin ATX 12V Power Connector 4 x SATA 6Gb/s Connectors 1 x CPU Fan Header 1 x System Fan Header 1 x Front Panel Header 1 x Front Panel Audio Header 1 x S/PDIF Out header 1 x USB 3.0/2.0 Header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) Header 1 x Clear CMOS Jumper
- Other Features :
- 2 x DDR4 DIMM 3 x PCI Express slot 4 x USB 3.0/2.0 ports 6 x USB 2.0/1.1 ports
Buy From
Description
Gigabyte 100 series motherboard has the latest Intel Core 6th / 7th generation, audio noise guard with a high-quality audio capacitor, Realtek GbE LAN with cFosSpeed internet accelerator Software, superfast transfer rates of up to 5 Gbps, 1 x PCI Express x 16 slots, 4 x SATA 6Gb/s connectors storage interface, iTE I/O Controller Chip, 1 x 64 Mbit flash BIOS.
